Polymer Processing Aids (PPA)
Polymer Processing Aids Introduction
Polymer Processing Aids are free-flowing additives made of modified fluoro-elastomer which improve the processing of polyolefin resin at very low levels of usage. BX Polymer Processing Aids are coated at the inside of the die wall and decrease the friction between melted resin and the die wall. Click link to check
Fluoropolymers PPAs & Non-Fluorine PPAs(PFAS Free PPA)
The majority of polymer processing aids are fluoropolymer PPAs, while now due to the EU restriction proposal on PFAS Substances, fluoropolymer PPAs belongs to PFAS Substances, and it’s a big challenge to PPA manufacturer such as 3M and others. Baoxu Chemical takes that challenge and here we introduce our latest PFAS Free PPAs, BX PPA S100, BX PPA S200, without fluoropolymers to replace PFAS ppa.
Application of Polymer Processing Aids in Plastic baoxu chemica.pdf

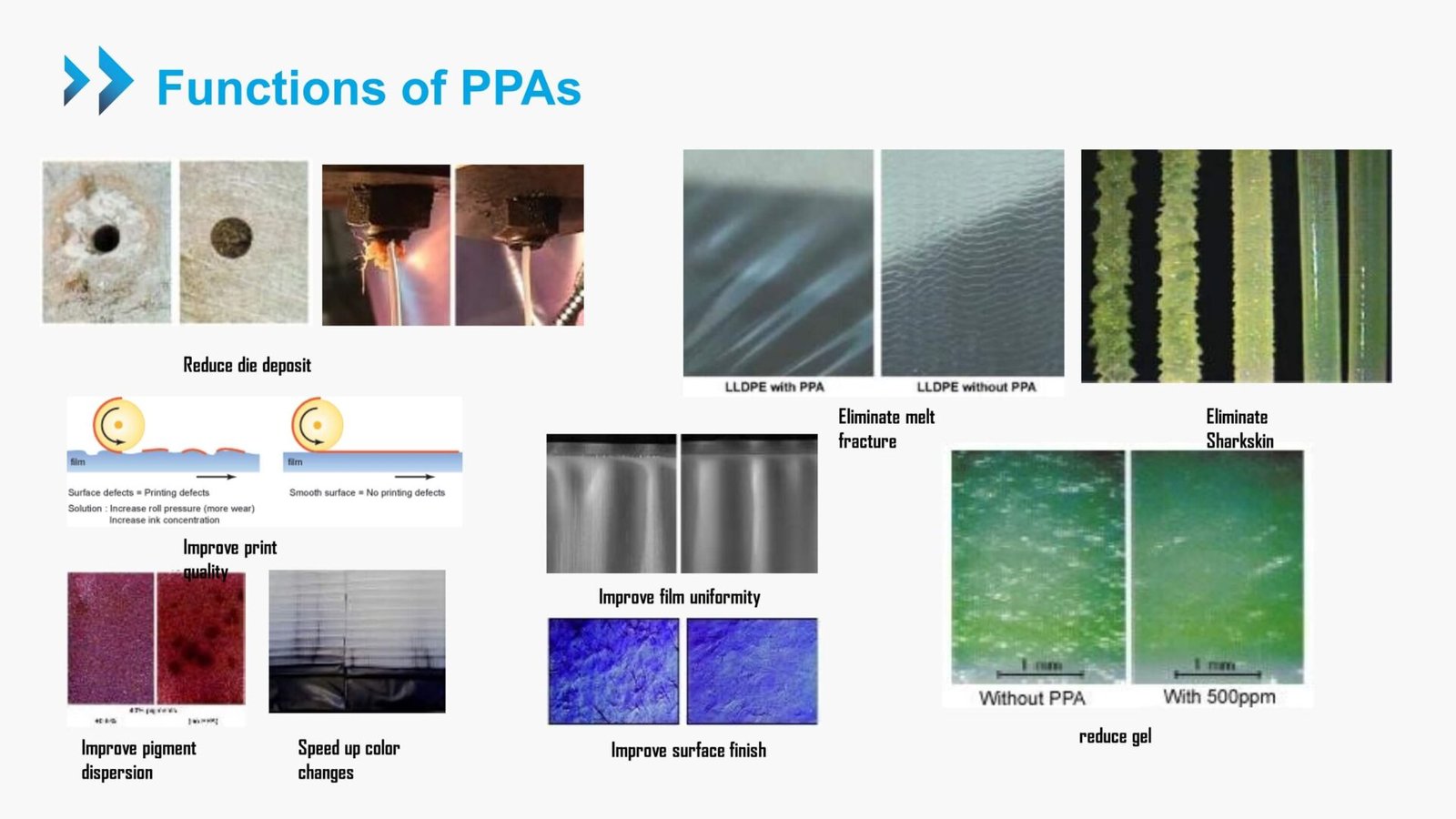

PPA Features and Benefits
- Reduces or eliminates die build-up
- Excellent thermal stability for high-temperature processing
- Ideal for use in high viscosity, high molecular weight polyolefins
- Lowers apparent melt viscosity
- Speeds colorant change

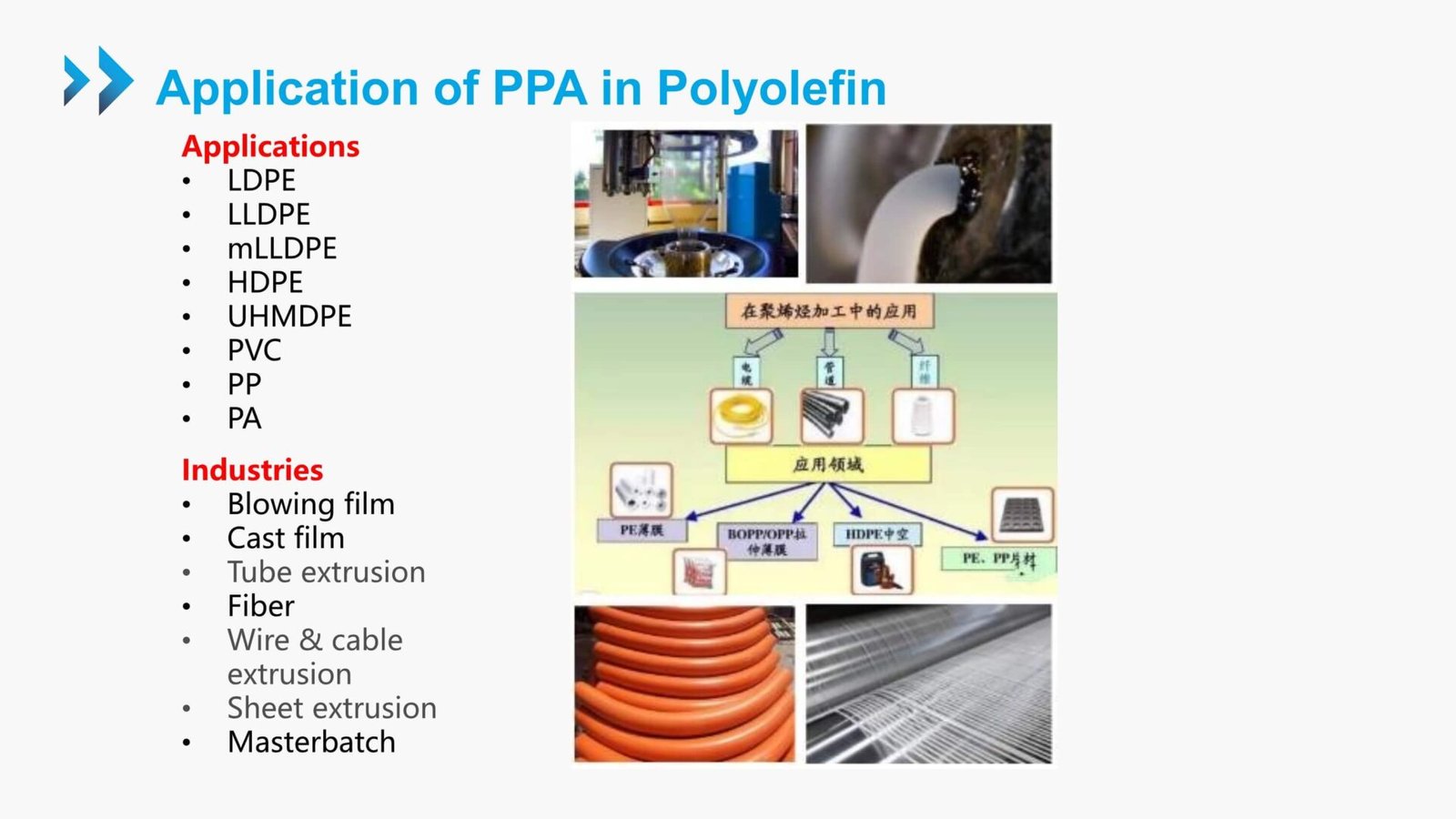

Application of Polymer Processing Aids PPAs
| Application | 5920A | 5924X | F9613 | F9614X | 5911 | 5912X | 5914X |
|---|---|---|---|---|---|---|---|
| LLDPE Blown Film | ☆ | ☆ | ☆ | ☆ | |||
| LDPE Blown Film | ☆ | ☆ | ☆ | ☆ | |||
| HDPE Blown Film | ☆ | ☆ | ☆ | ||||
| HDPE Fiber Extrusion | ☆ | ☆ | ☆ | ||||
| HDPE Pipes & Fittings | ☆ | ||||||
| HDPE Blow Molding | ☆ | ||||||
| High-speed Cable | ☆ | ||||||
| Cable & wirte Cable | ☆ | ☆ | ☆ | ☆ | ☆ | ||
| PP Fiber Extrusion | ☆ | ||||||
| BOPP Film | ☆ | ||||||
| CPP Film | ☆ | ||||||
| PP-R & PP-B Pipes | ☆ | ||||||
| Pigment Dispersion | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ | ☆ |
| ABS, PC, PS, PET | ☆ | ☆ | |||||
| PA (Nylon) | ☆ | ||||||
| PVC | ☆ |
3m, Dakin, Baoxu PPA Compare table
| Baoxu | 3M | Dakin | fluo polymer content | application |
| BX PPA 5911 | Dynamar FX 5911 | 25190-89-0 100% | most application | |
| BX PPA 5922 | Dynamar FX 5922 | 9011-17-0 25-35% | ||
| BX PPA 5920 | Dynamar FX 5920 | DA 810x/910 | 9011-17-0 25-35% | ldpe/lldpe/cable |
| BX PPA 5924 | Dynamar FX 5924 | DA 912 | 9011-17-0 25-35% | ldpe/lldpe/cable |
| BX PPA 9613 | Dynamar FX 9613 | 9011-17-0 88-92% | ldpe/lldpe/hdpe/cable | |
| BX PPA 9614 | Dynamar FX 9614 | 310ST | 9011-17-0 88-93% | ldpe/lldpe/hdpe/cable |
| BX PPA 5922M | Dynamar FX 5922M | 810X | 9011-17-0 25-35% | ldpe/lldpe |
| BX PPA 5927M | Dynamar FX 5927M | 9011-17-0 10-25% | ldpe/lldpe/hdpe | |
| BX PPA 5929M | Dynamar FX 5929M | 9011-17-0 40-55% | ldpe/lldpe/hdpe | |
| BX PPA S100 | PFAS FREE | |||
| BX PPA S200 | PFAS FREE |
Packing
20kg/Carton, 480kgs per pallet.
Production Capacity
300MT/Year
PPA Processing Guideline：
- Typical dosage 0.02% -0.1%
- Dispersion is critical for good performance
- 20-60 minutes of conditioning time
- 2-5% concentration masterbatch to have good dispersion or direct addition during polymer pelletization
- Twin screw extruders
- Sufficient mixing screw elements to avoid heavy shear
